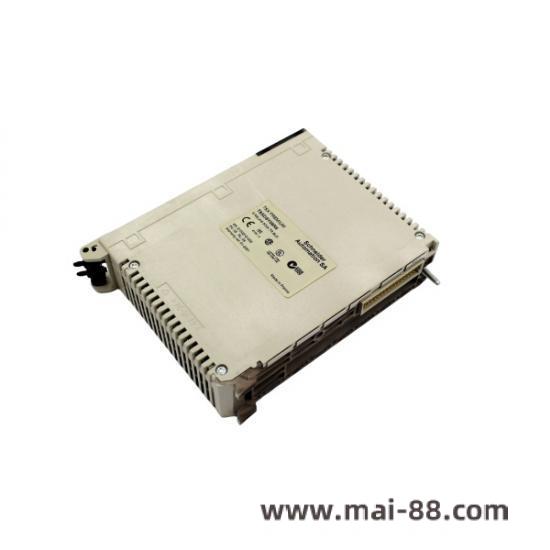

Schneider TSXDSY08R5 Discrete Output Module – Industrial Automation Control System Component
The Schneider TSXDSY08R5 is an advanced discrete output module engineered for the Modicon Premium Automation platform. Designed for demanding industrial environments, this versatile module supports both AC (10-240V) and DC (12-24V) voltage ranges, making it ideal for applications across diverse sectors including manufacturing, energy, and process control.
Technical Specifications
- Product ID: TSXDSY08R5
- Output Type: 8 Discrete Outputs
- DC Voltage Range: 12…24 V
- AC Voltage Range: 10…34 V, 24…240 V
- Connection Type: Screw terminal
- Current Consumption (5V DC): 55 mA
- Current Consumption (24V DC): 70 mA
- Power Dissipation: (0.25 W + 0.24 W × No of active outputs)
- Weight: 0.73 lb (0.33 kg)
- Compliance: EN/IEC 61131-2 Standards
Key Features & Benefits
- Robust construction for harsh industrial environments
- High-precision output control with 8-channel flexibility
- Screw terminal connections for vibration-resistant installations
- Compact design for space-constrained control cabinets
- Seamless integration with Modicon Premium platforms
As your trusted automation partner, contact us via WhatsApp for immediate technical assistance or custom configuration support.
About Stoker Automation Technology
With 20 years of industry expertise and a 5000㎡ warehouse, Stoker Automation Technology is your premier source for industrial automation components. We maintain extensive inventories of PLC modules, DCS systems, servo drives, and obsolete control system parts. Our products serve critical sectors including power generation, petrochemicals, manufacturing, and water treatment.
Our Service Commitment
All Schneider modules include our industry-leading 2-year warranty. Our certified engineers provide:
- Pre-sales technical consultation and system integration support
- 24/7 emergency replacement services
- Legacy system migration planning
- On-site troubleshooting (available in major industrial zones)
Can’t find your required model? Email our specialists for sourcing solutions – we maintain access to rare and discontinued components.
